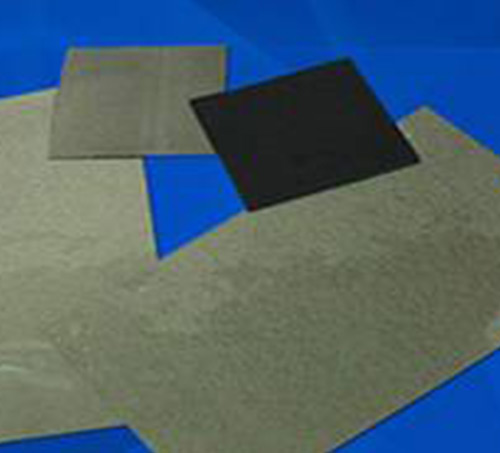

导热吸波材设计上不但拥有优良的热传导率，更提供柔软性、压缩及黏性的选择，并且降低空气对热阻的影响，使用方便，更有绝缘及缓冲的效果，另外还兼顾EMI电磁屏蔽的功能，使客户研发设计中增加了一个兼容性的选择。
|
产品特性:
》良好的热传导率: 1.0~3.0W/mK
|
|
|
(Applications) : Ø (Radiator bottom or frame) Ø (High-speed hard disk drive) Ø (RDRAM core storage module) Ø (Mini heat pipe radiator) Ø (Automotive engine control set) Ø (Communication harware) Ø (Portable type electron device) Ø (Semiconductor automatic laboratory equipment) Permeability:
|
|

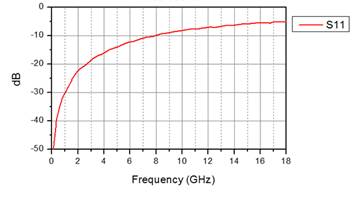

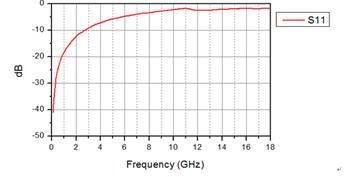

 Test with:WE-EZ10-10 |
|
导热吸波材规格表 |
||||
|
|
WE-EZ-XXX |
Test Method |
||
|
|
WE-EZ15-XXX |
WE-EZ20-XXX |
|
|
|
Color/颜色 |
灰色(Gray) |
灰色(Gray) |
NA |
|
|
Thickness/厚度 |
0.020”(0.51mm)~ 0.200”(5.08mm) |
0.020”(0.51mm)~ 0.200”(5.08mm) |
ASTM D374 |
|
|
Thickness Tolerance/厚度公差 |
±10% |
±10% |
NA |
|
|
Density (g/cm3)/密度 |
2.45g/cm3 |
2.45g/cm3 |
ASTM D297 |
|
|
Hardness (Shore Type C)/硬度 |
30 +5.0 |
30 +5.0 |
ASTM D2240 |
|
|
Tensile Strength (Mpa)/拉伸强度 |
NA |
0.10 |
0.10 |
ASTM D412 |
|
Continuous Use Temperature (oC)/工作温度 |
-40oC ~ 150oC |
-40oC ~ 150oC |
NA |
|
|
UL Flame Rating/阻燃等级 |
Meet 94 HB |
Meet 94 HB |
Equivalent UL |
|
|
Thermal Conductivity (W/mk)/ 导热系数 |
≥1.5W/mk |
≥2.0W/mk |
ASTM D5470 |
|
|
Application of frequency 应用频段 |
100M-5G |
100M-5G |
NA |
|
|
Permeability 磁导率（5MHZ） |
6 |
6 |
安捷伦E4285A |
|
|
Surface Resistivity (表面阻抗) |
>1MΩ |
>1MΩ |
|
|

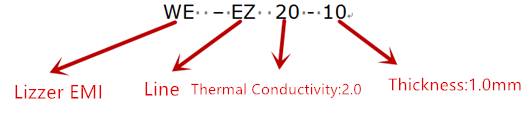

GRADE/PART NUMBER:
